Low-Cost TOF-SIMS Delivered to IFOS, Germany

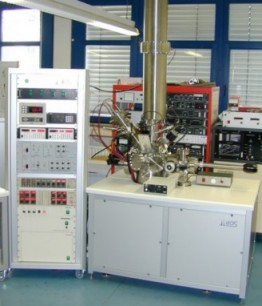

SIMS instrumentation is notoriously expensive, and a full TOF-SIMS system from other commercial manufacturers can easily cost >$1 million. In this project Kore supplied a large number of components to IFOS at the University of Kaiserslautern, to permit them to assemble an imaging TOF-SIMS at a ‘sensible’ cost. The Kore components cost £82.1k, and included:
-
Main analytical chamber (‘bell jar’ style)
-
Load lock chamber and magnetically coupled introduction arm
-

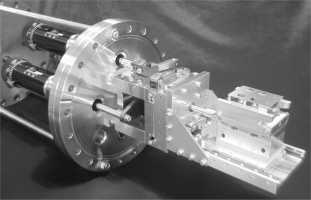

UHV High stability X, Y, Z stage (manual)
-
Sample holders to permit back mounting of four samples
-
Variable magnification SIMS extraction optics
-
An R-500 reflectron
-
Flight tube
-
40mm diameter dual channelplate detector (DMCP)
-
High voltage power supplies
-
TOF-MS Logic Controller
-
TOF-MS Voltage Controller
-
Spectrometer controller
-
Time to Digital Converter (TDC)
-
PC with mass spectral and imaging software
